Pogo Pin

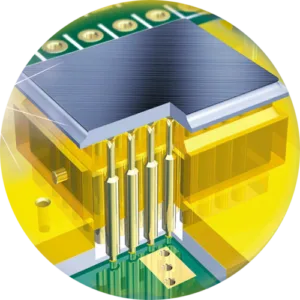

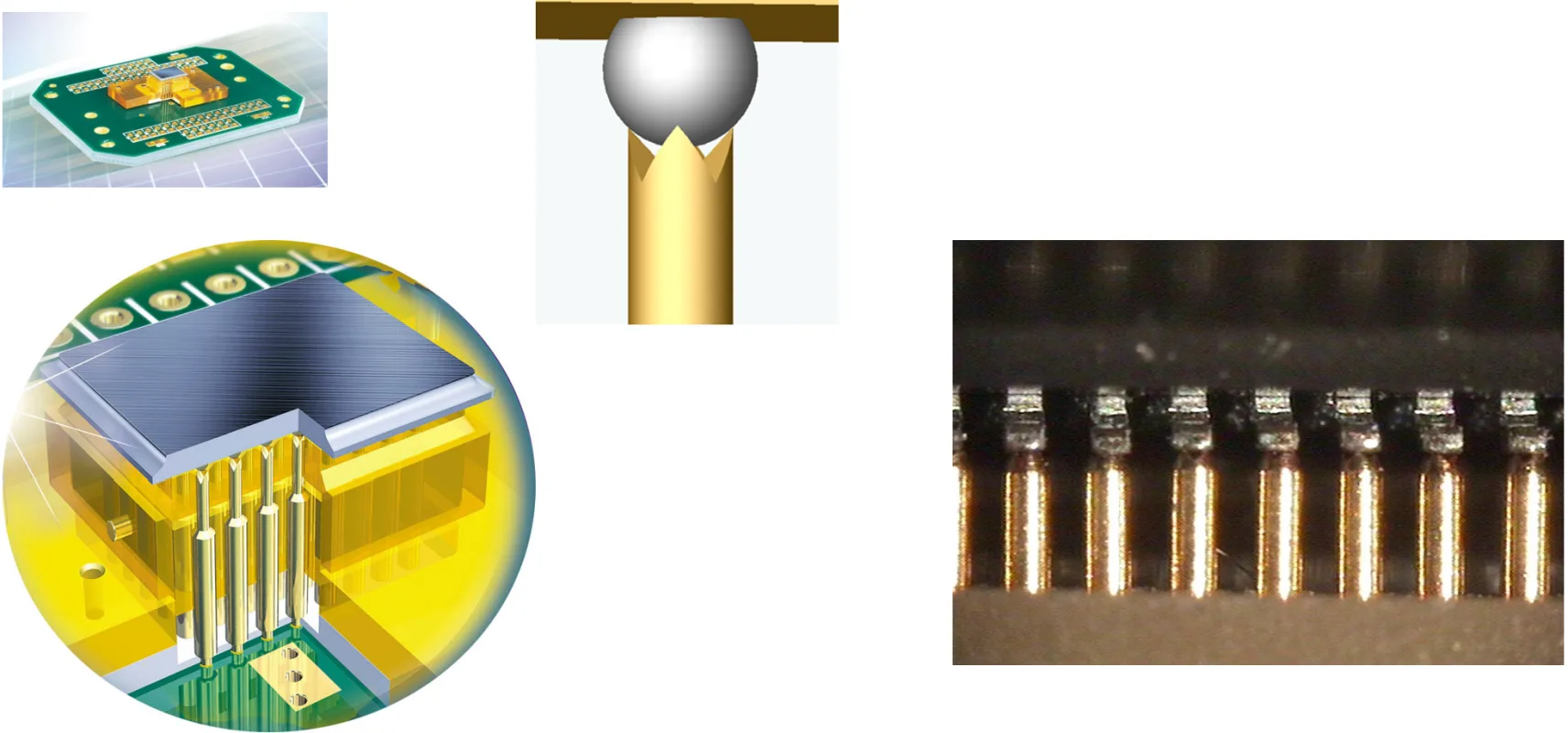

Pogo pins are utilized for manufacturing pogo-type sockets for the packaged ICs test. The tip of the pogo pin is made into various types depending on the shape of the test object, such as balls and pads, and we supply the optimal pin type that meets the customer’s needs.

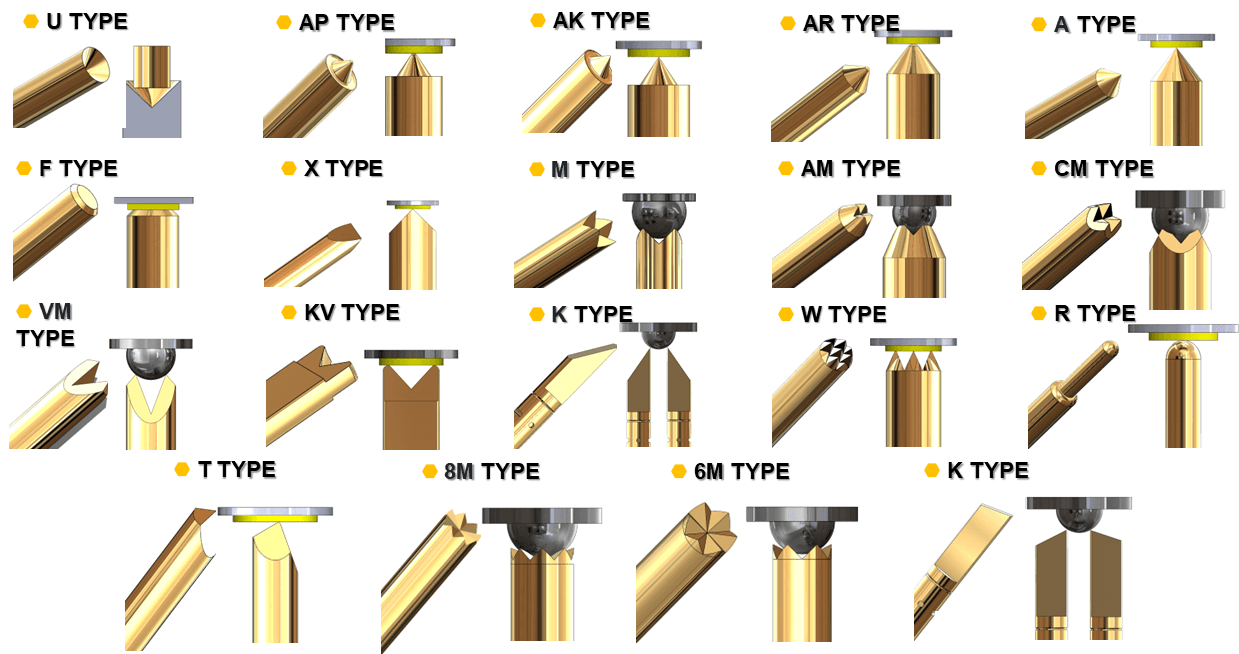

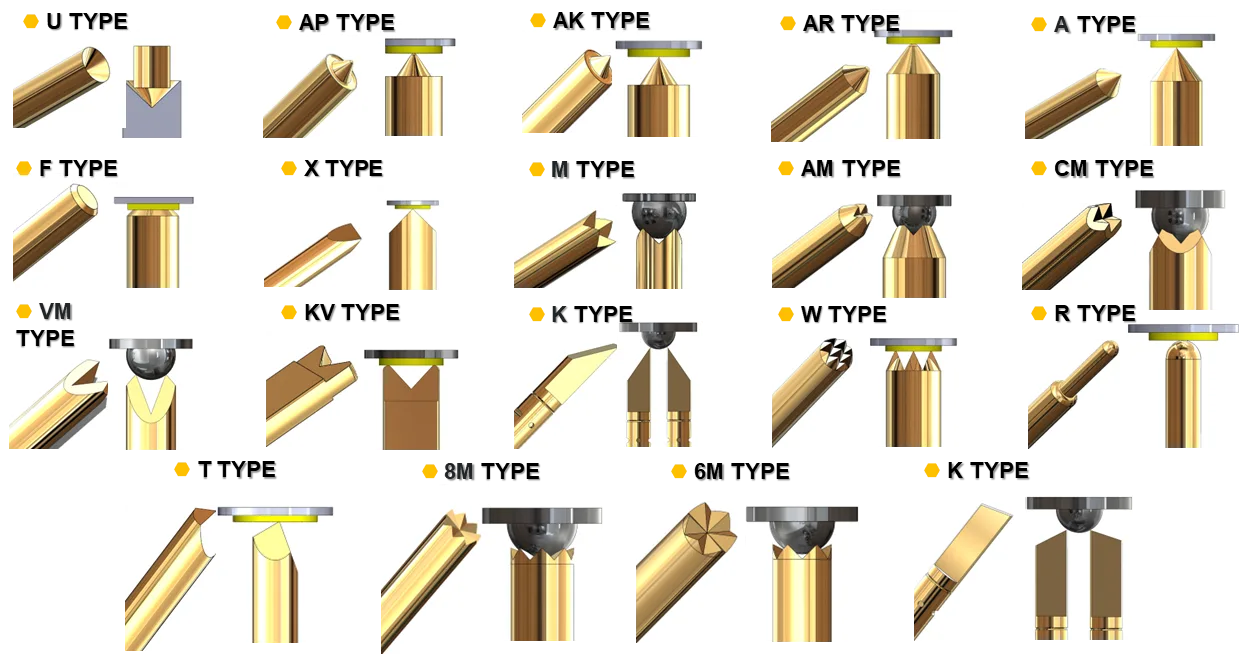

Pogo Pin Tip Shape

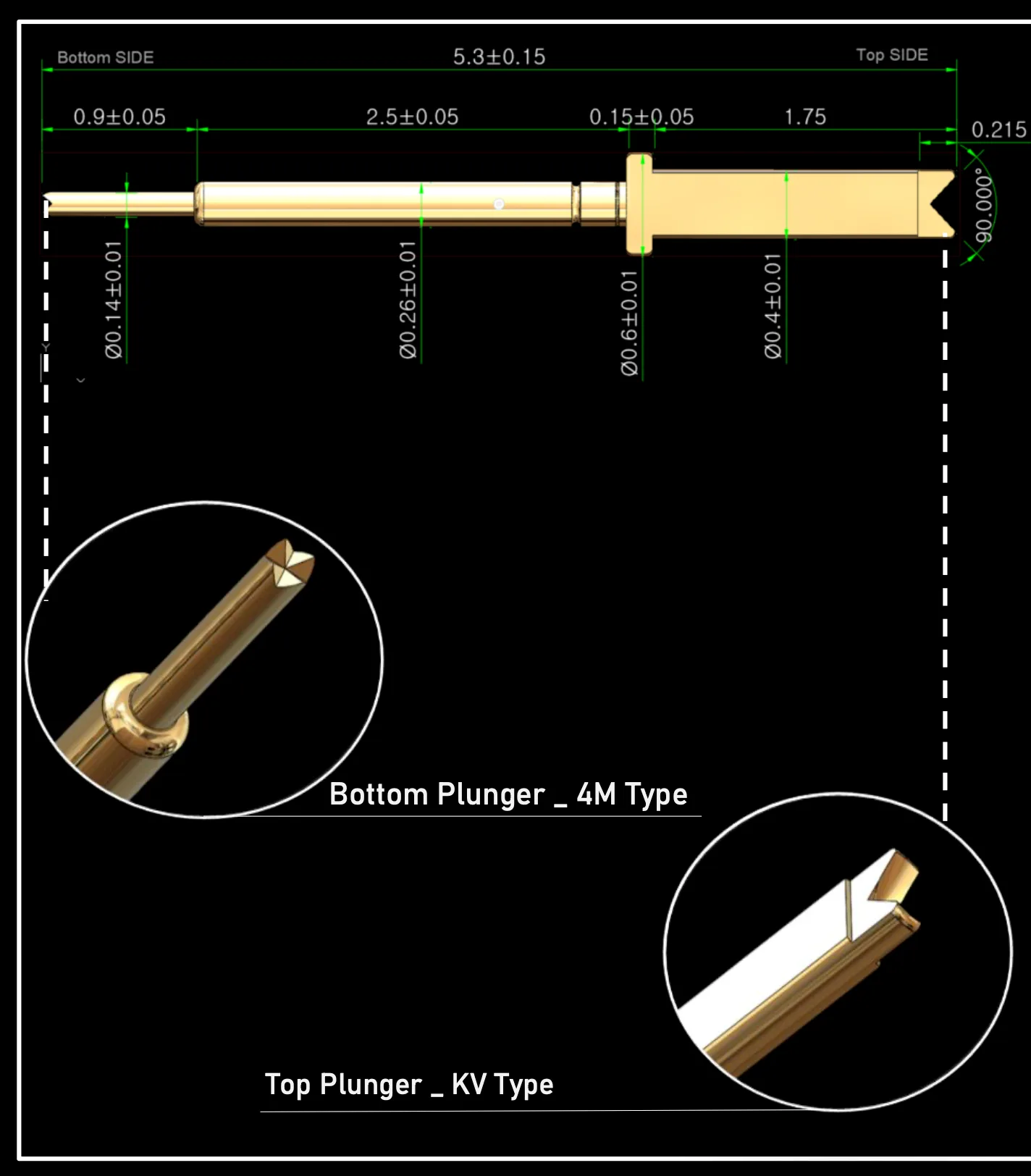

kv type : OS03VC-F5.3
| Spring Force | Initial Force Recommended Stroke Full Stroke | 2.5gf 0.70mm @ 15.5gf 0.90mm @ 19.0gf |
| Material Spec | Barrel Top Plunger Bottom Plunger Spring | PBT / Gold plated SK4 / Gold plated Becu / Gold plated SWP / Gold plated |
| Mechanical Spec | Pointing Accuracy Operating Temperature Spring Life Expectancy | ± 50um -25°C ~ +125°C 200K < |
| Electrical Spec | DC Resistance (Avg) Current Rating Band Width Self Inductance Capacitance | <80mΩ 2 amps continuous -1 dB @ 18.11 GHz 0.93nH 0.52pF |

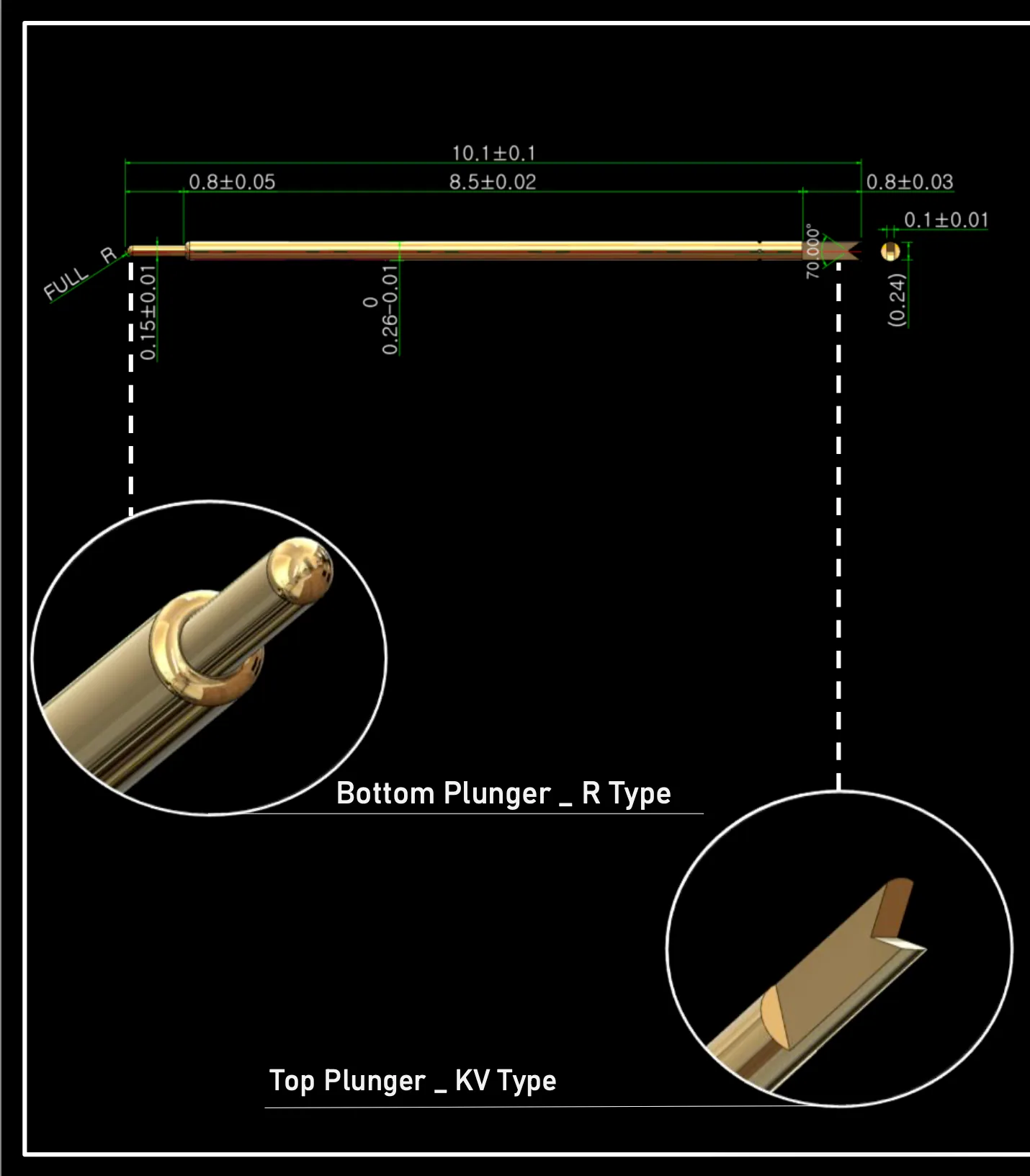

kv type : OS03VR-F10.1
| Spring Force | Initial Force Recommended Stroke Full Stroke | 4.0gf 0.50mm @ 24.0gf 0.65mm @ 30.0gf |
| Material Spec | Barrel Top Plunger Bottom Plunger Spring | PBT / Gold plated SK4 / Gold plated SK4 / Gold plated SWP / Gold plated |
| Mechanical Spec | Pointing Accuracy Operating Temperature Spring Life Expectancy | ± 50um -25°C ~ +125°C 300K < |
| Electrical Spec | DC Resistance (Avg) Current Rating Band Width Self Inductance Capacitance | <100mΩ 1.5 amps continuous -1 dB @ 10.43 GHz 1.14nH 0.57pF |

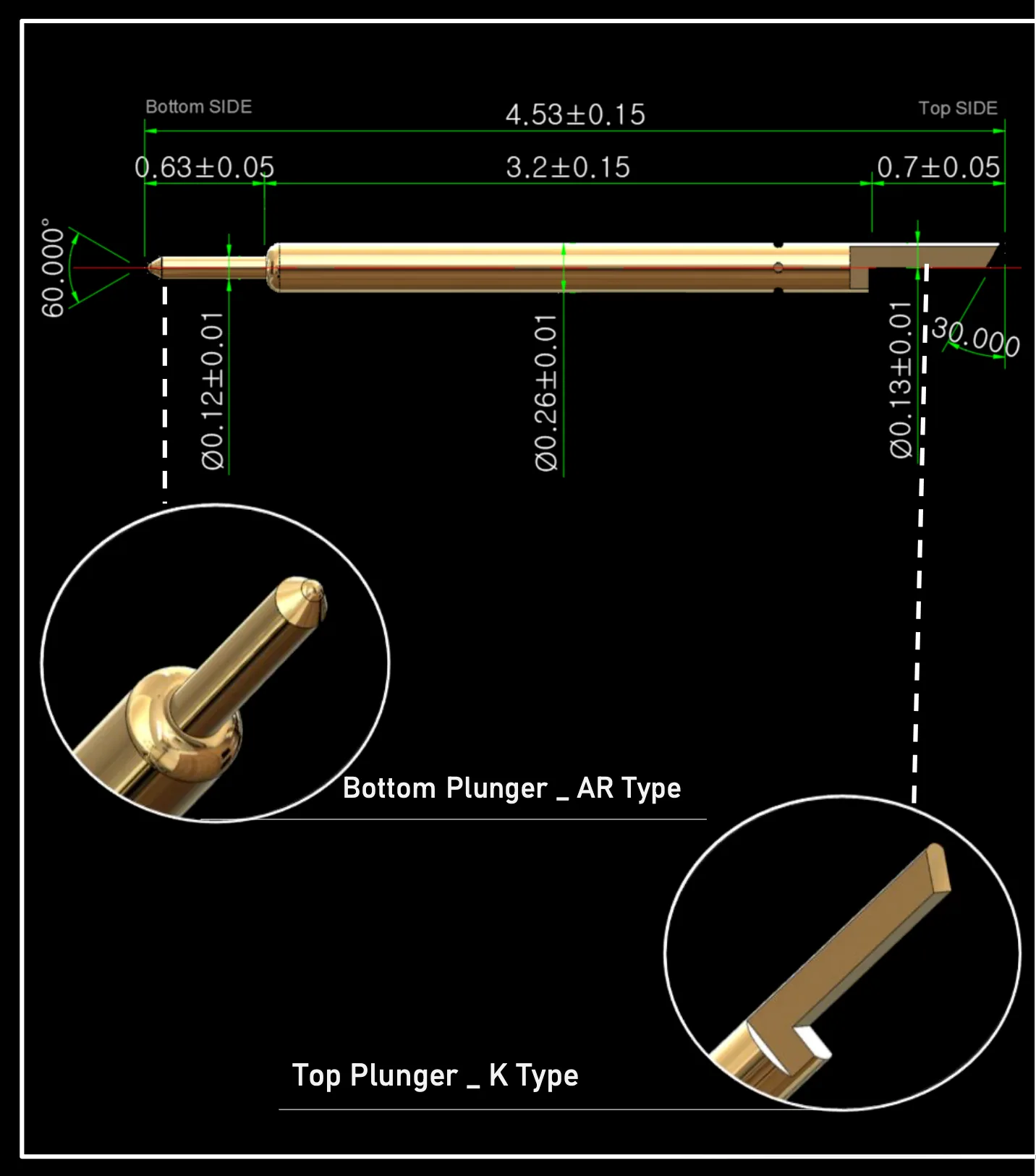

k type : OS03VA-F4.53
| Spring Force | Initial Force Recommended Stroke Full Stroke | 2gf 0.30mm @ 10.0gf 0.60mm @ 20.0gf |
| Material Spec | Barrel Top Plunger Bottom Plunger Spring | PBT / Gold plated SK4 / Gold plated Becu / Gold plated SWP / Gold plated |
| Mechanical Spec | Pointing Accuracy Operating Temperature Spring Life Expectancy | ± 50um -25°C ~ +125°C 300K < |
| Electrical Spec | DC Resistance (Avg) Current Rating Band Width Self Inductance Capacitance | <70mΩ 2 amps continuous -1 dB @ 16.80 GHz 2.27nH 0.83pF |

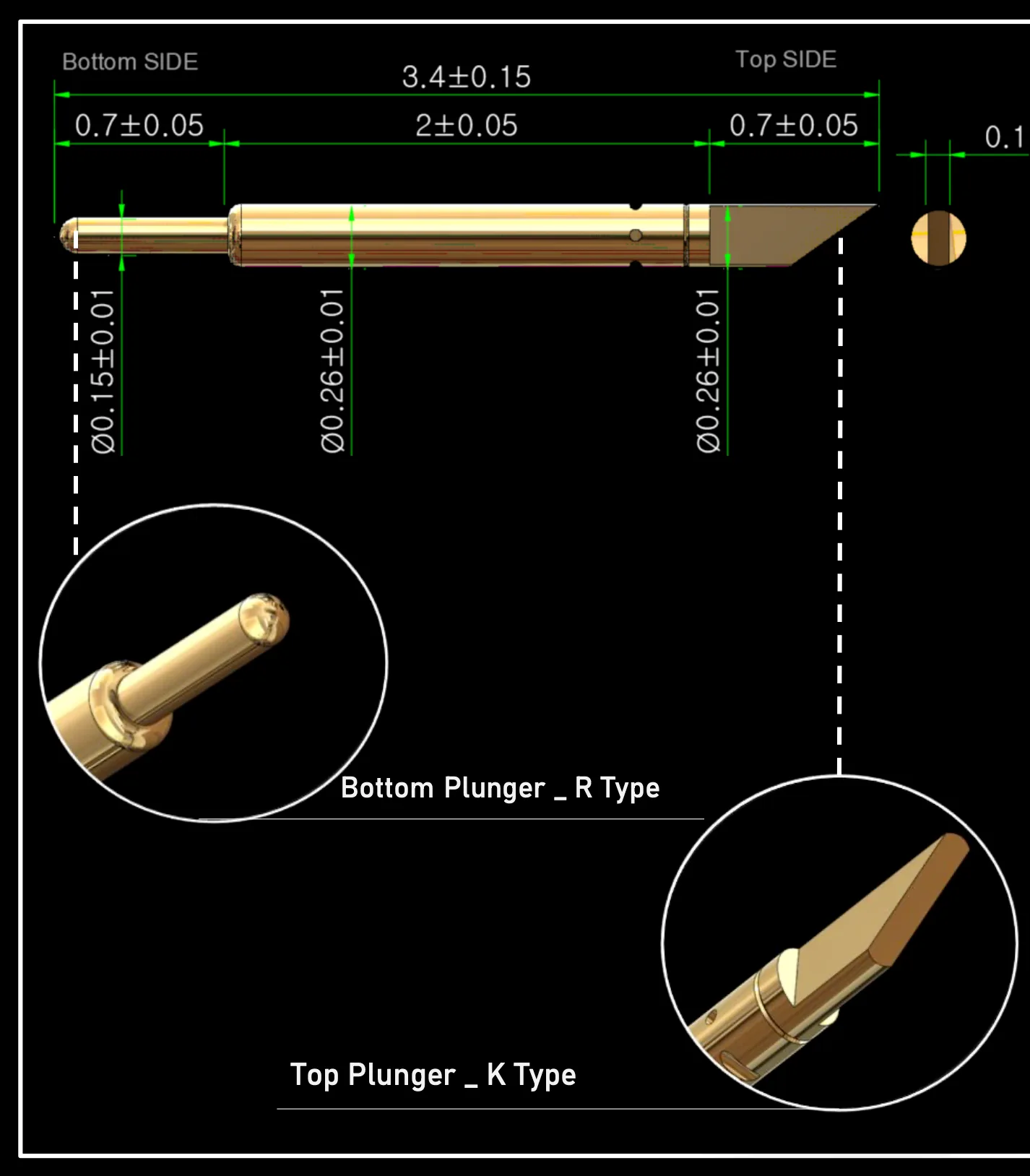

k type : OS03VA-F3.4
| Spring Force | Initial Force Recommended Stroke Full Stroke | 3gf 0.60mm @ 10.0gf 0.70mm @ 12.5gf |
| Material Spec | Barrel Top Plunger Bottom Plunger Spring | PBT / Gold plated SK4 / Gold plated Becu / Gold plated SWP / Gold plated |
| Mechanical Spec | Pointing Accuracy Operating Temperature Spring Life Expectancy | ± 50um -25°C ~ +125°C 300K < |
| Electrical Spec | DC Resistance (Avg) Current Rating Band Width Self Inductance Capacitance | <60mΩ 2 amps continuous -1 dB @ 12.47 GHz 1.12nH 0.58pF |

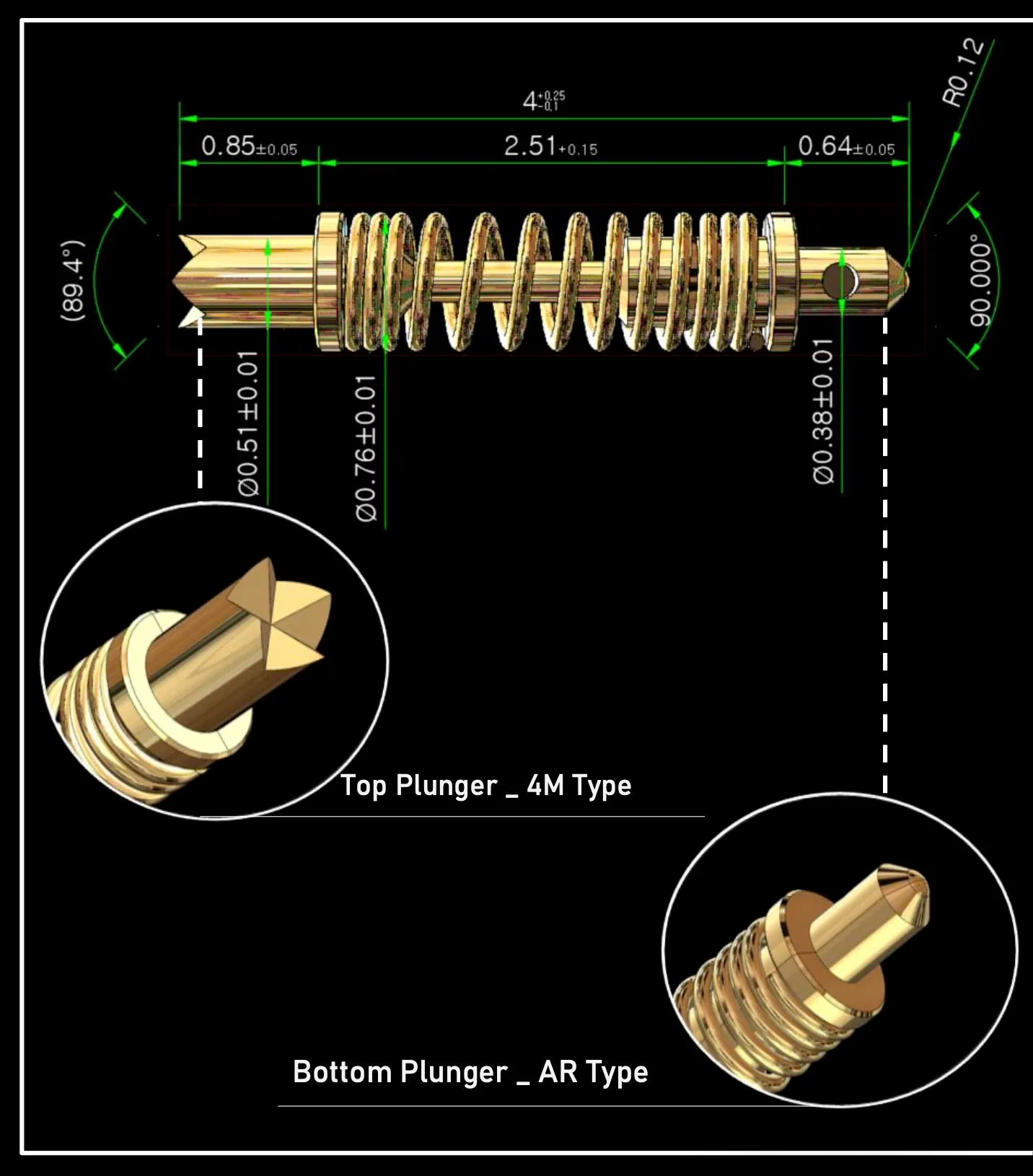

Barreless type : OD08CR-F4.0
| Spring Force | Initial Force Recommended Stroke Full Stroke | 0gf 0.70mm @ 40.0gf 0.80mm @ 43.5gf |
| Material Spec | Barrel Top Plunger Bottom Plunger Spring | – Becu / Gold plated Becu / Gold plated SUS / Gold plated |
| Mechanical Spec | Pointing Accuracy Operating Temperature Spring Life Expectancy | ± 50um -55°C ~ +155°C 300K < |
| Electrical Spec | DC Resistance (Avg) Current Rating Band Width Self Inductance Capacitance | <1200mΩ 3 amps continuous -1 dB @ 20.23 GHz 1.10nH 0.67pF |

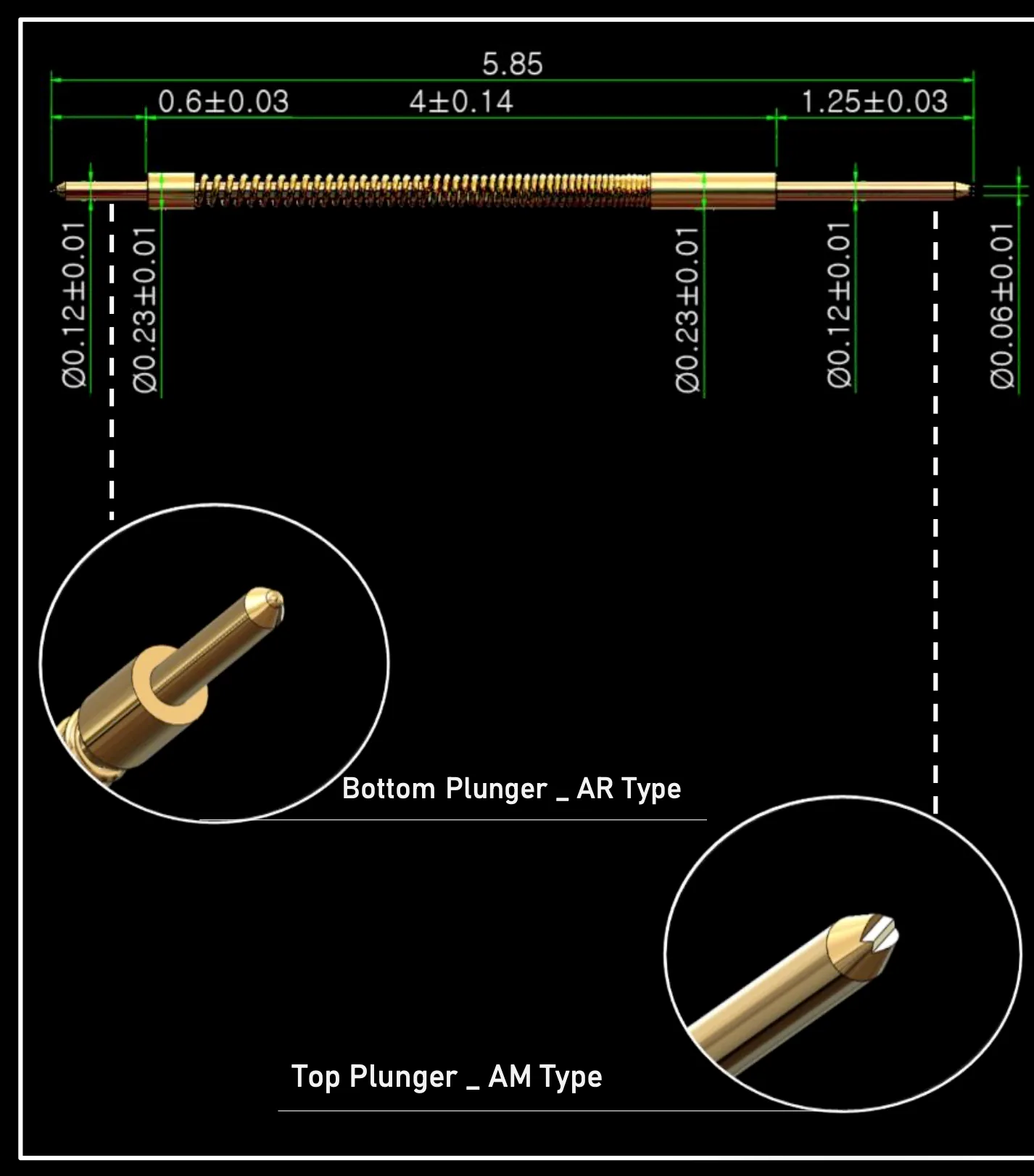

Barreless type : OD03CA-P5.85
| Spring Force | Initial Force Recommended Stroke Full Stroke | 0gf 0.65mm @ 23.0gf 0.80mm @ 28.5gf |
| Material Spec | Barrel Top Plunger Bottom Plunger Spring | – SK4 / Gold plated SK4 / Gold plated SWP / Gold plated |
| Mechanical Spec | Pointing Accuracy Operating Temperature Spring Life Expectancy | ± 80um -25°C ~ +125°C 300K < |
| Electrical Spec | DC Resistance (Avg) Current Rating Band Width Self Inductance Capacitance | <120mΩ 1.2 amps continuous -1 dB @ 8.71 GHz 0.89nH 0.73pF |
